Insufficient, incoherent sampling rate with ZED-ROS2 wrapper

K2H · May 12, 2025, 7:42am

Greetings,

I’m developing a Visual-Inertial Navigation application using the ZED-ROS2 Wrapper. However, I’m facing some serious issues when I record data using the ros2 bag record command, as follows:

Insufficient camera image topic publish rate
- ZED-ROS2 wrapper cannot publish camera images at 60fps with HD720@60fps settings. the camera topic publish rate is only around 37 Hz.
- With ros2 bag record function, the camera publish rate drops drastically from about 37 Hz down to roughly 27 Hz.
Unreliable IMU topic sampling rate
- Although the IMU maintains a desired topic publish rate (up to 400Hz), the variance in the recorded sampling rate is exceptionally high.

None of the measures I’ve tried to improve this instability have worked:

I forced best_effort QoS overrides in the common_stereo.yaml configuration (as shown below), but saw no improvement.
Disabling depth and pose tracking features helps raise camera topic publish rate slightly, but does not solve the problem.
Subscribing compressed / uncompressed images (.../image_raw_color or .../image_raw_color/compressed) doesn’t show any differences.

During the entire ros2 bag record process, both CPU and GPU utilization on the Jetson device remained well below capacity, and the system uses a high-speed NVMe SSD for storage. Therefore, we do not believe this issue is caused by hardware-related problems.

Despite extensive research—including browsing the Stereolabs forums and related documentation—we have not been able to find a clear solution to this problem.

I would greatly appreciate any guidance you can provide .

Hardwares & Configurations

Before sharing the recorded results, here is the hardware/software environment we used:

ZED SDK: 5.0 (I’ve also tried 4.x version)
ZED-ROS2 Wrapper: Latest main branch (2025-05-10)
Storage: NVMe SSD, 512 GB
Compute Platform:
- NVIDIA Jetson Orin NX (16 GB RAM)
- Jetson Orin Nano Carrier Board
- JetPack 6.2 (CUDA 12.6, OpenCV 4.8.0)
- ROS2 Humble, python 3.10
ZED Cameras
- ZED mini, ZED2i connected via USB 3.2
- Camera set to HD720, grab & publish @ 60 fps
- Publish resolution: NATIVE

My goal is to stream sensor data as quickly as possible, so I modified the following settings:

Disabled depth sensing and positional tracking
Tuned sensor and camera grab & publish rate parameters
Applied best_effort QoS for both IMU and camera topics

# config/zedm_yaml
# Parameters for Stereolabs ZED mini camera

# 목적: depth, tracking 이런거 다 제끼고 최대한 빠르게 camera, IMU sensor data 뽑아내기
# `zed_wrapper/config/common_stereo.yaml` 의 항목을 덮어써서 사용하게 됨.
---
/**:
    ros__parameters:
        general:
            camera_model: 'zedm'
            camera_name: 'zedm' # usually overwritten by launch file
            grab_resolution: 'HD720' # The native camera grab resolution. 'HD2K', 'HD1080', 'HD720', 'VGA', 'AUTO'
            grab_frame_rate: 60 # ZED SDK internal grabbing rate
            pub_resolution: 'NATIVE' # 'NATIVE', 'CUSTOM', 'OPTIMIZED'
            pub_frame_rate: 60.0 # RGB/Depth publish rate (double)
            enable_image_validity_check: 0 # [SDK5 required] Sets the image validity check. If set to 1, the SDK will check if the frames are valid before processing.

        # Override QoS for fast-publishing data
        qos_overrides:
            '/zed/zed_node/imu/data_raw':
                publisher:
                    reliability: best_effort
            '/zed/zed_node/imu/mag':
                publisher:
                    reliability: best_effort
            '/zed/zed_node/left_raw/image_raw_color/compressed':
                publisher:
                    reliability: best_effort
            '/zed/zed_node/right_raw/image_raw_color/compressed':
                publisher:
                    reliability: best_effort

        # Maximize IMU readings
        sensors:
            sensors_pub_rate: 400. # frequency of publishing of sensors data. MAX: 400. - MIN: grab rate

        # disable depth sensing
        depth:
            depth_mode: 'NONE' # Matches the ZED SDK setting: 'NONE', 'PERFORMANCE', 'QUALITY', 'ULTRA', 'NEURAL', 'NEURAL_PLUS' - Note: if 'NONE' all the modules that requires depth extraction are disabled by default (Pos. Tracking, Obj. Detection, Mapping, ...)
            min_depth: 0.1 # Min: 0.1, Max: 3.0
            max_depth: 10.0 # Max: 20.0

        # disable pos tracking
        pos_tracking:
            pos_tracking_enabled: false # True to enable positional tracking from start
            imu_fusion: false # enable/disable IMU fusion. When set to false, only the optical odometry will be used.
            publish_tf: false # [overwritten by launch file options] publish `odom -> camera_link` TF
            publish_map_tf: false # [overwritten by launch file options] publish `map -> odom` TF

ZED cameras are connected via USB 3.2 (10Gbps), as follows:

$ sudo dmesg -w | grep ZED
[  231.526454] hid-generic 0003:2B03:F881.0003: hidraw2: USB HID v1.11 Device [STEREOLABS ZED-2i HID INTERFACE] on usb-3610000.usb-2.1.2/input0
[  231.656411] usb 2-1.1: Found UVC 1.10 device ZED 2i (2b03:f880)
[  231.679062] input: ZED 2i: ZED 2i as /devices/platform/bus@0/3610000.usb/usb2/2-1/2-1.1/2-1.1:1.0/input/input9
[  281.292108] hid-generic 0003:2B03:F881.0004: hidraw2: USB HID v1.11 Device [STEREOLABS ZED-2i HID INTERFACE] on usb-3610000.usb-2.1.2/input0

The following topics are recorded:

# sensor data
'/zed/zed_node/imu/data_raw'

# Left, Right cam
'/zed/zed_node/left_raw/image_raw_color/compressed'
'/zed/zed_node/right_raw/image_raw_color/compressed'

Issue 1: Insufficient camera image topic publish rate

When I start recording with these settings:

The camera frame rate (which is already limited to about 36–37 Hz at launch) drops further to ≈ 27 Hz under rosbag2 record.
The IMU topic still publishes at roughly 380–390 Hz with no significant variance.
CPU and GPU both show ample headroom throughout.

Initial launch behavior (before recording):

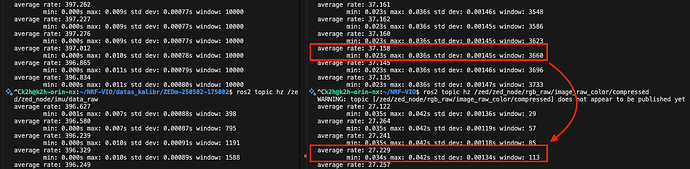

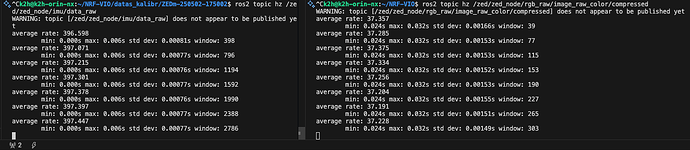

On both ZED2i and ZED mini, even though I configure HD720 @ 60 fps, the node only ever publishes at ~36–37 fps at startup.
I verified this in rqt, and the frame rate does not change whether or not rqt is running.

Behavior under rosbag2 record:

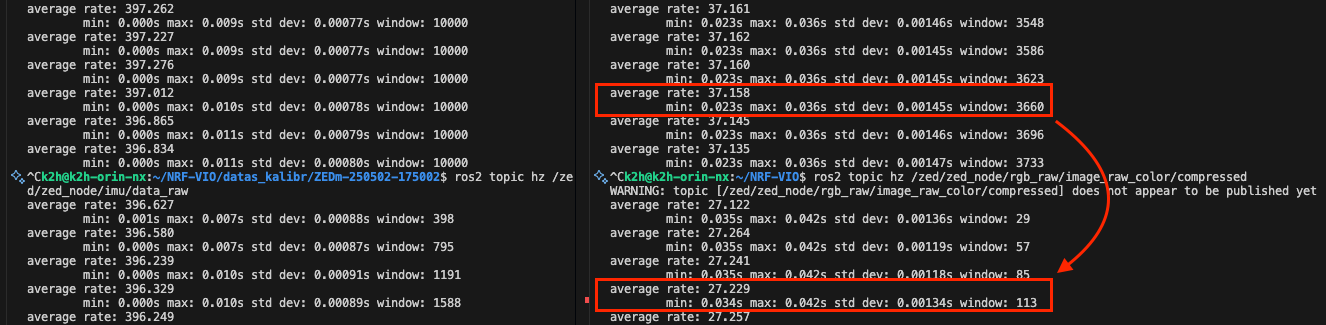

The camera topic drops from ~37 Hz down to ~27 Hz.
The IMU topic remains at ~380–390 Hz, with only minor fluctuations.
This degradation happens identically on both ZED2i and ZED mini.

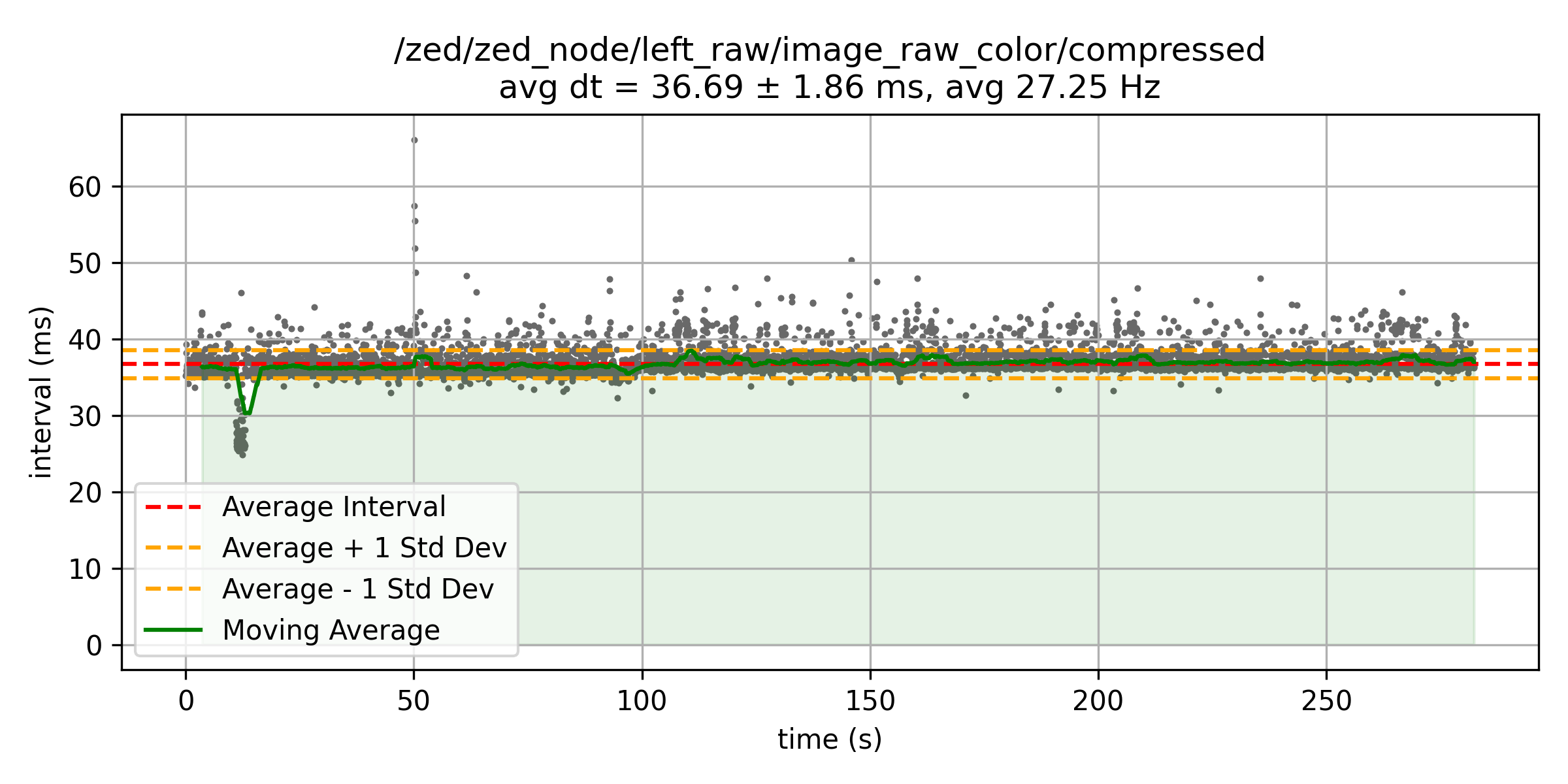

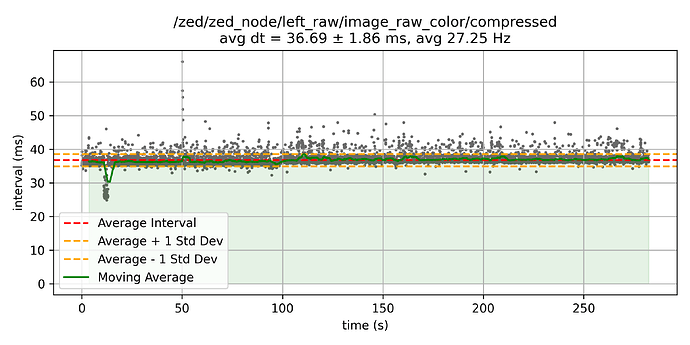

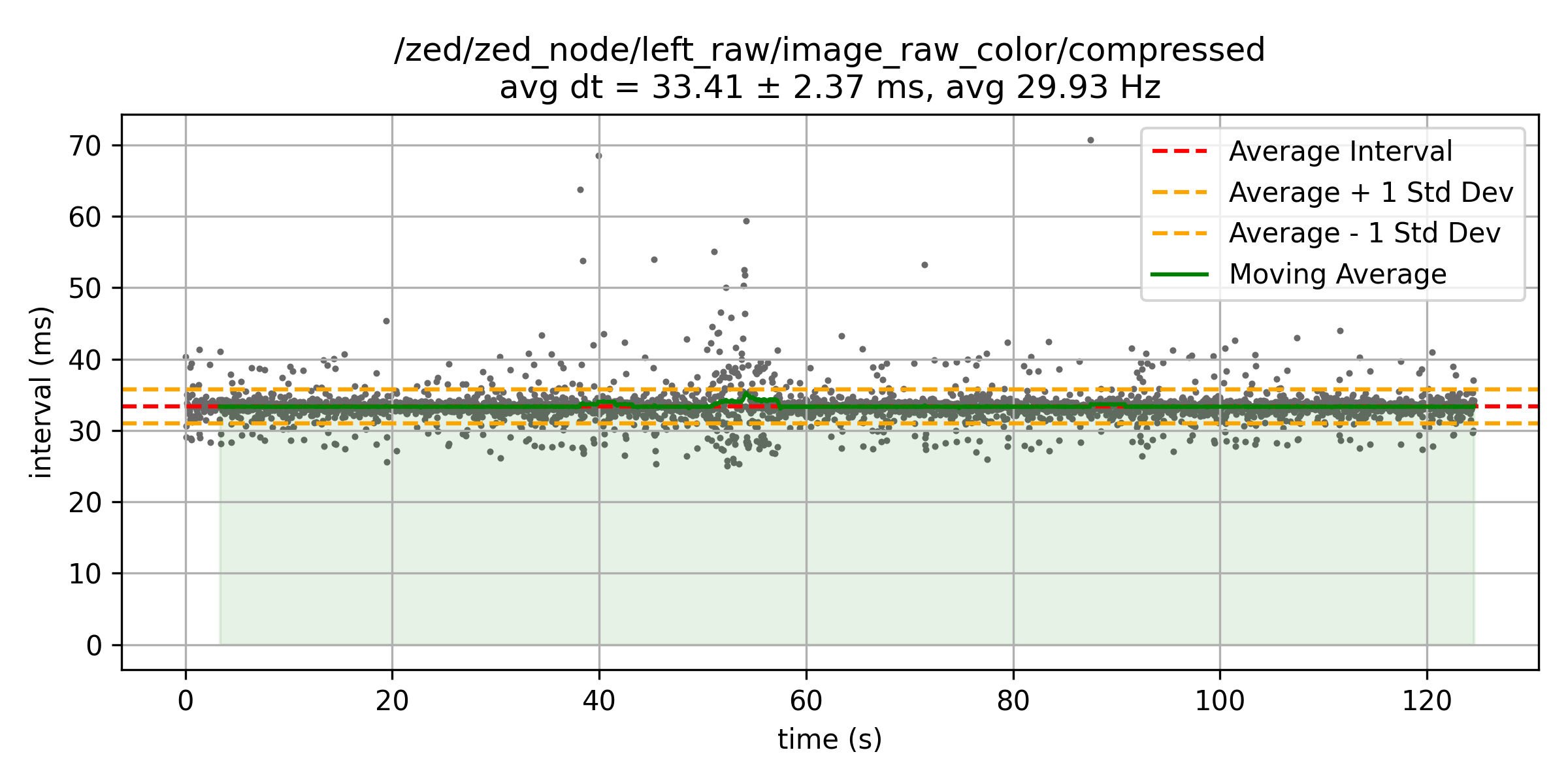

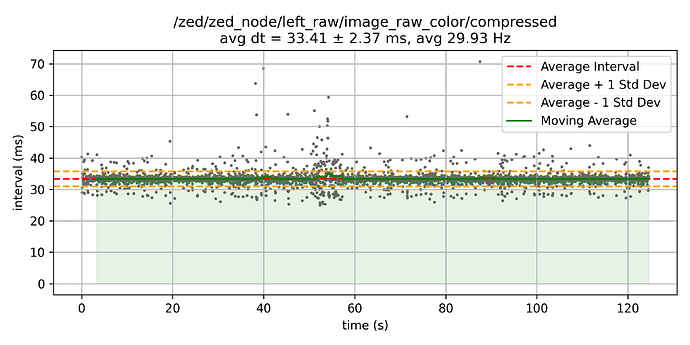

Recorded timestamps from the camera image topic are shown below:

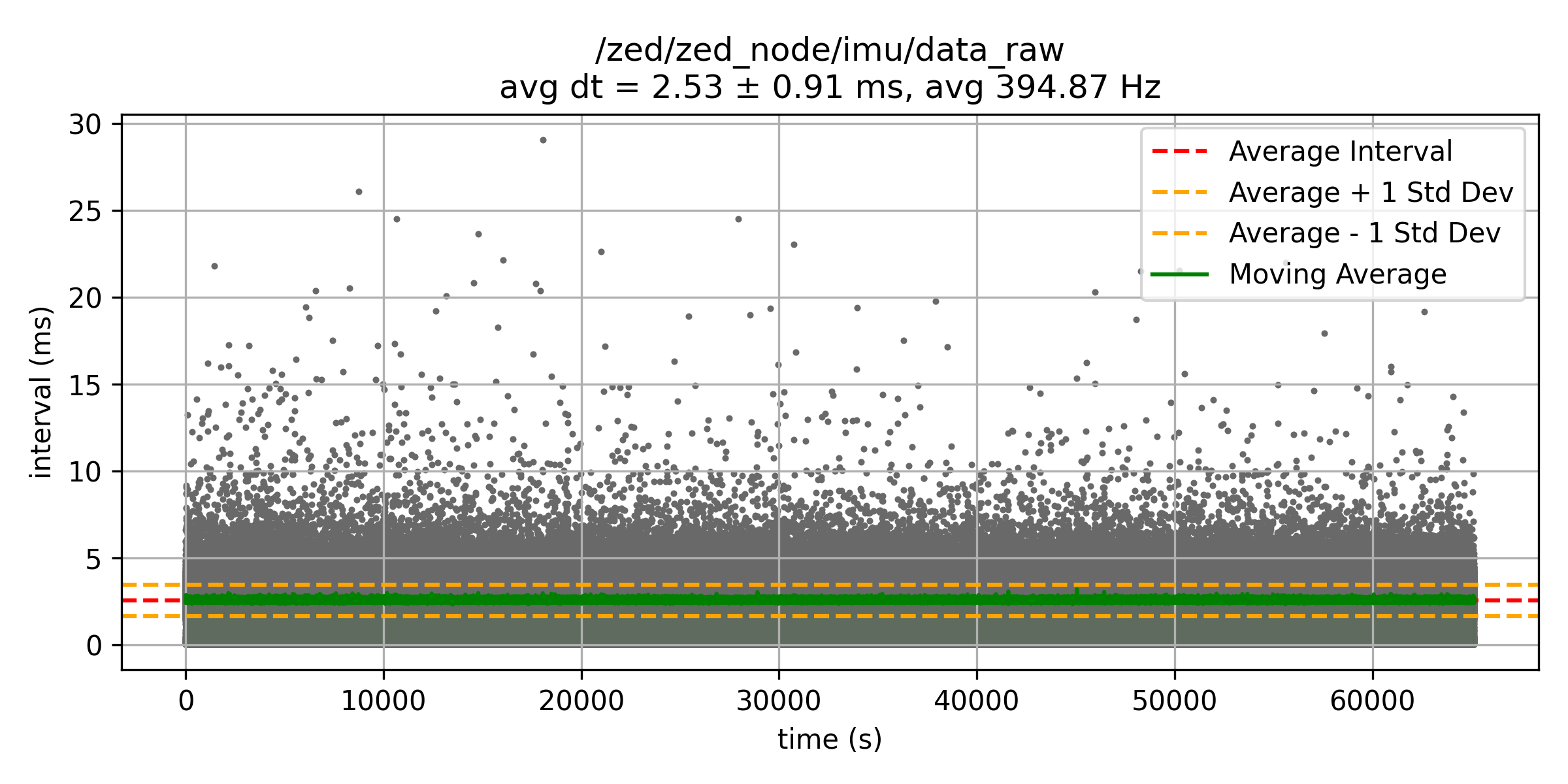

Issue 2: Unreliable IMU topic sampling rate

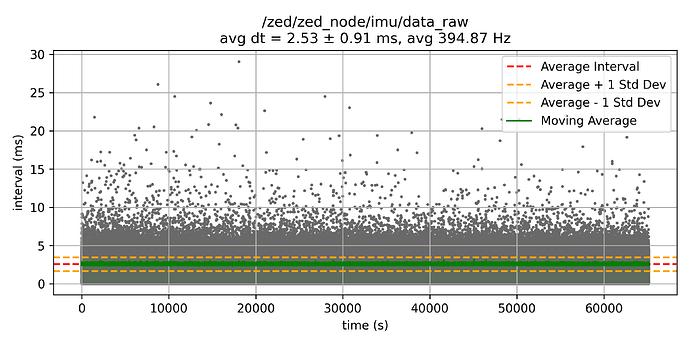

The timestamp variance observed in the logged IMU sensor data is significantly larger than expected. The results are visualized below:

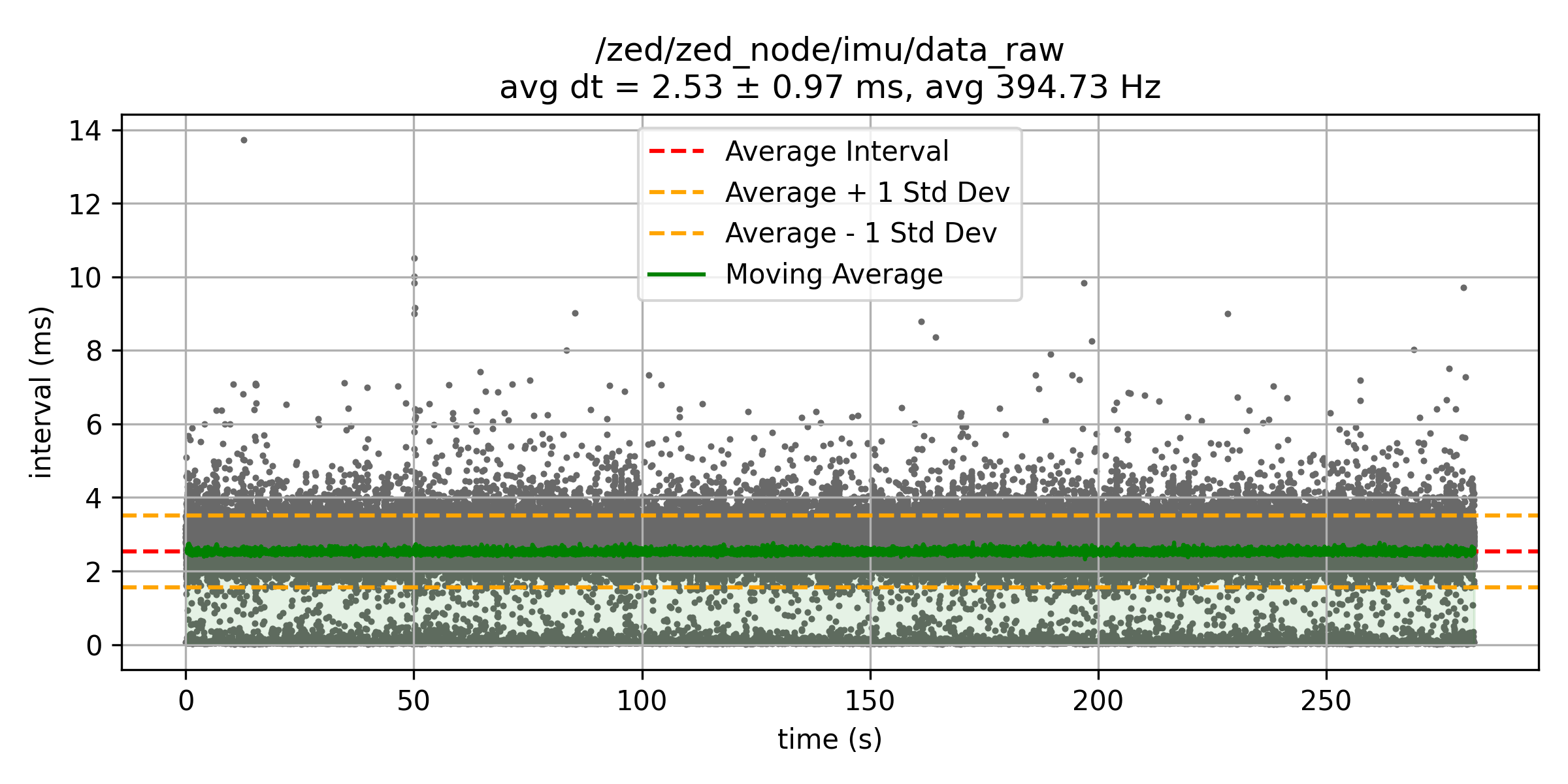

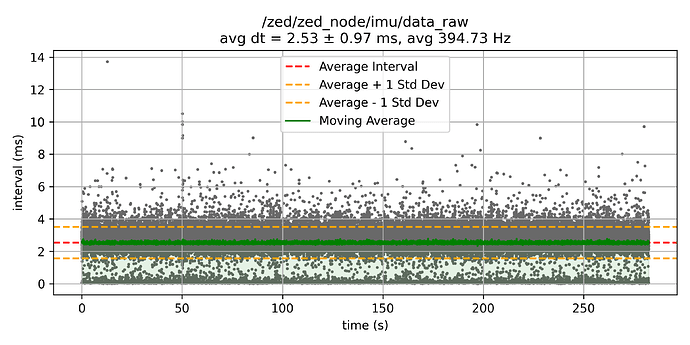

Below is the result from recording only the IMU topic using ros2 bag record, specifically for IMU intrinsic calibration. Even without recording any image topics, the IMU sampling rate still shows unreasonably high variance.

This indicates that the issue is not caused by camera image encoding or bandwidth limitations, but rather suggests an underlying problem in how the IMU data is retrieved or published under the current configuration.

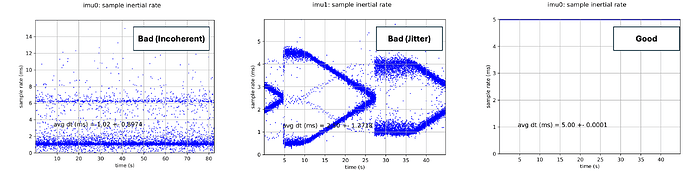

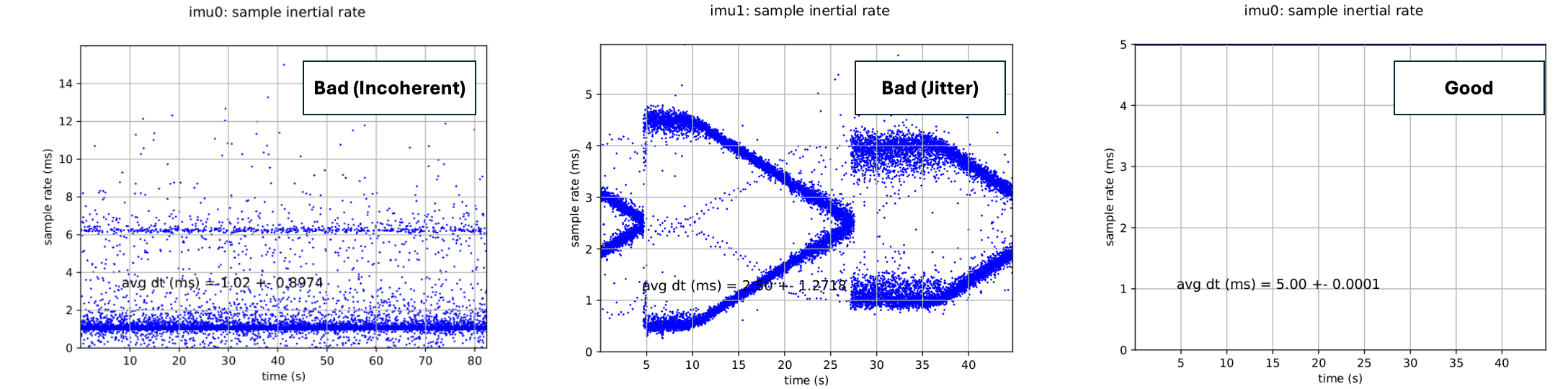

These results appear to match the “incoherent” case described in the Kalibr documentation and community discussions. Below is a reference comparison showing two inappropriate examples (left) and one correct example (right). Our case clearly falls into the incoherent category, which “bursts” the sensor data messages.

Myzhar · May 12, 2025, 10:59am

Hi @K2H
Welcome to the Stereolabs community.

What Depth mode are you using? Did you tune your system by following this section of the documentation?

ROS 2 is not real-time. It’s not possible to guarantee a precise ODR for a high frequency data.

ros bag recording is HIGH DEMANDING in terms of CPU resources and disk write speed.
If you subscribed to too many large topics and enabled data compression for both ros bag and image data, your NVIDIA Jetson Orin NX is surely overloaded.

K2H · May 15, 2025, 4:23am

Hello @Myzhar !

Thank you very much for your help.

First, I’d like to clarify that I am only subscribing to the following three topics from the ZED-ROS2 Wrapper:

/zed/zed_node/imu/data_raw at 200Hz
/zed/zed_node/left_raw/image_raw_color/compressed with HD720@30fps
/zed/zed_node/right_raw/image_raw_color/compressed with HD720@30fps

Changing to Cyclone DDS

As you suggested, I switched to Cyclone DDS.

After making this change, I confirmed that on Jetson Orin, both camera image topics were able to maintain 30fps while using ros2 bag record.

Incoherent IMU sampling rate

However, the “bursting” behavior of the IMU topic has not improved.

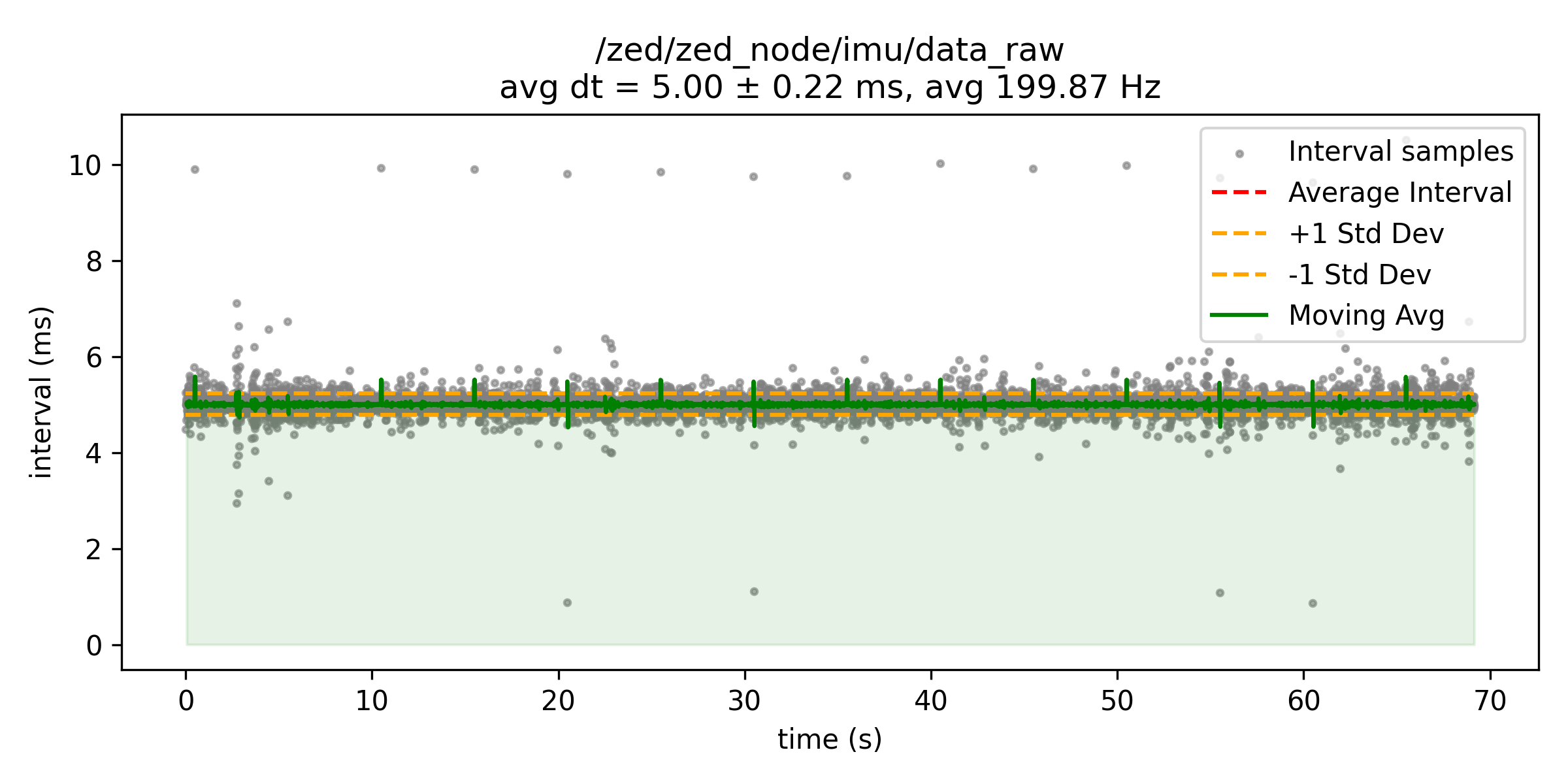

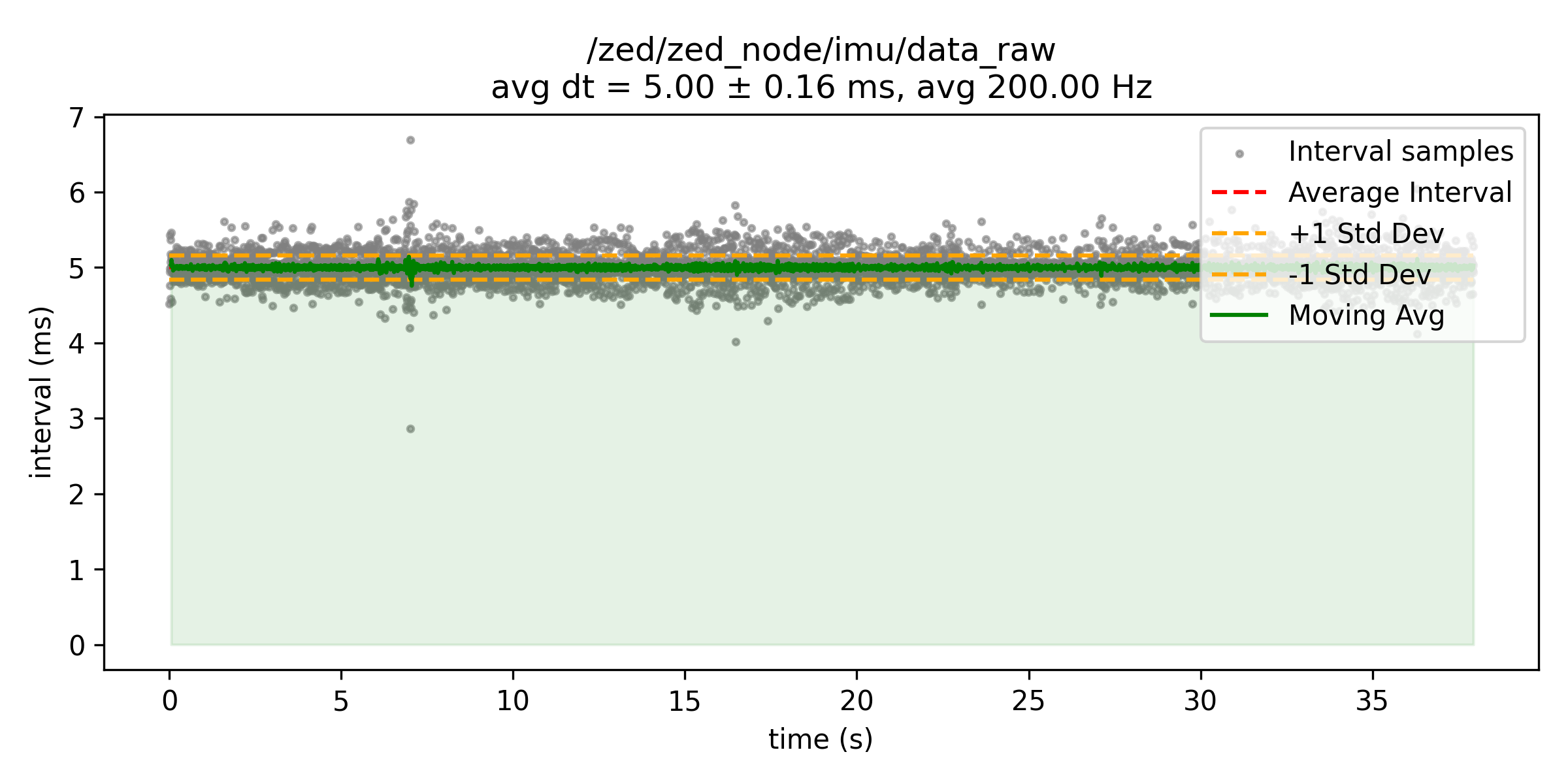

To examine this, I subscribed only to /zed/zed_node/imu/data_raw from the ZED-ROS2 wrapper. To avoid any load induced by ros2 bag record, this test excluded recording entirely— simply measured time intervals between incoming messages.

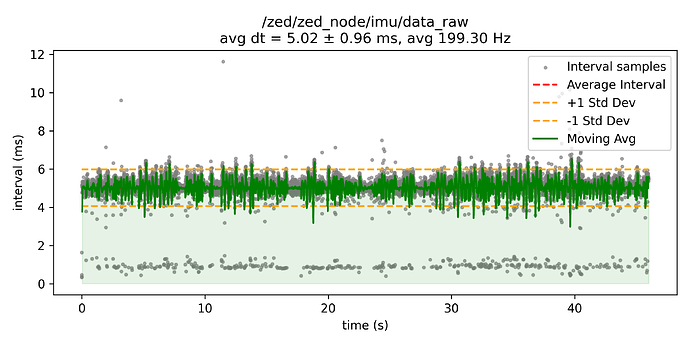

As shown below, although most samples arrive around the expected 5 ms interval (i.e., ~200 Hz), a large number of samples cluster near 0.5 ms, indicating a burst pattern:

For comparison, I wrote a simple Python script that publishes randomly generated IMU messages at a fixed rate. In that test, the bursting pattern was not observed, unlike in the ZED-ROS2 wrapper:

I understand that DDS in ROS 2 does not guarantee real-time performance.
However, even with sufficient available resources on the Jetson platform, the sampling rate of topics published by the ZED-ROS2 wrapper appears somewhat irregular and exhibits higher variance than expected.

Is there any way to further improve this problem?

Once again, thank you very much for your helpful response.

Myzhar · May 15, 2025, 8:34am

Can you try to use your sample node to publish real IMU samples retrieved by using the ZED SDK?

This could allow us to understand if the problem is related to the ZED SDK or the ZED ROS2 Wrapper.

K2H · May 15, 2025, 12:45pm

Dear @Myzhar, thank you for your help.

I’ve working on calling the ZED SDK directly in my Python code. However, while using the ZED SDK Python API, I encountered an issue where Imu data cannot be published at a frequency higher than 30Hz. Additionally, there seems to be a problem with subscribing to the Imu topic published by the ZED-ROS2 Wrapper, specifically related to the QoSProfile.depth setting. This leads to my question.

Does increasing QoSProfile.depth value of subscriber causes considerable latencies to Cyclone DDS or ZED-ROS2 wrapper?
Is there a specific parameter in the ZED SDK Python API to adjust the IMU sensor data rate within the ZED SDK Python API? I referenced examples from the ZED SDK GitHub repository while writing my code, but I’m unsure which part of my attached code causes the trouble.

Configuration

Subscribing IMU topic (/zed/zed_node/imu/data_raw) only, no rosbag recording
ZED-ROS2 Wrapper: depth off, tracking off, HD720@30fps, IMU 200Hz, Publisher-Default QoS

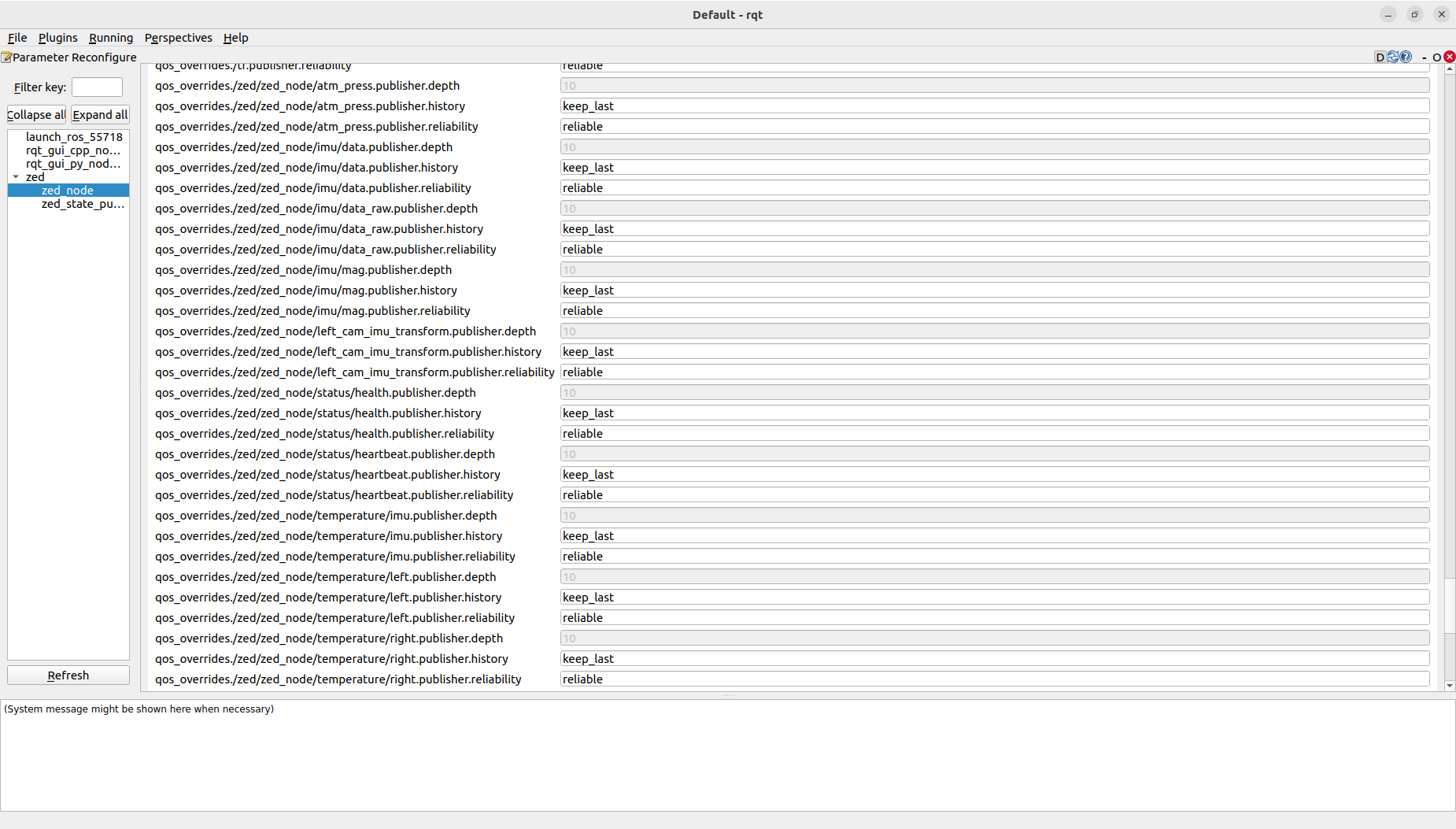

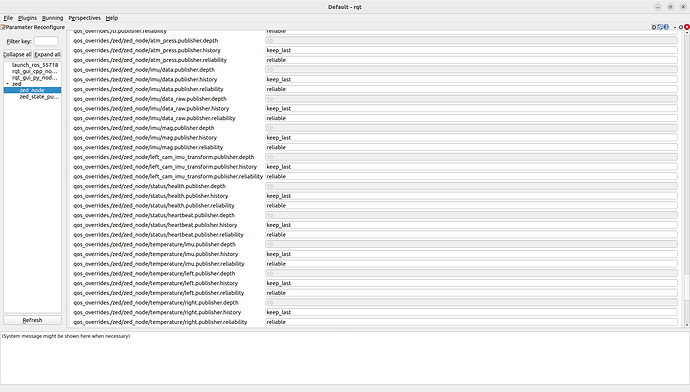

ZED-ROS2 Wrapper QoS Params1850×1053 215 KB
Python subscriber QoS configuration

qos = QoSProfile(
    depth=1,
    reliability=ReliabilityPolicy.RELIABLE,
    durability=DurabilityPolicy.VOLATILE,
    history=HistoryPolicy.KEEP_LAST, )

Cyclone DDS Configuration

<?xml version="1.0" encoding="UTF-8" ?>
<CycloneDDS
  xmlns="https://cdds.io/config"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="https://cdds.io/config https://raw.githubusercontent.com/eclipse-cyclonedds/cyclonedds/master/etc/cyclonedds.xsd">
  <Domain Id="any">
    <General>
      <Interfaces>
        <NetworkInterface autodetermine="true" priority="default" multicast="default" />
      </Interfaces>
      <AllowMulticast>default</AllowMulticast>
      <MaxMessageSize>65500B</MaxMessageSize>
    </General>
    <Internal>
      <SocketReceiveBufferSize min="10MB"/>
      <Watermarks>
        <WhcHigh>500kB</WhcHigh>
      </Watermarks>
    </Internal>
  </Domain>
</CycloneDDS>

qos.durability affects burst from ZED-ROS2 Wrapper

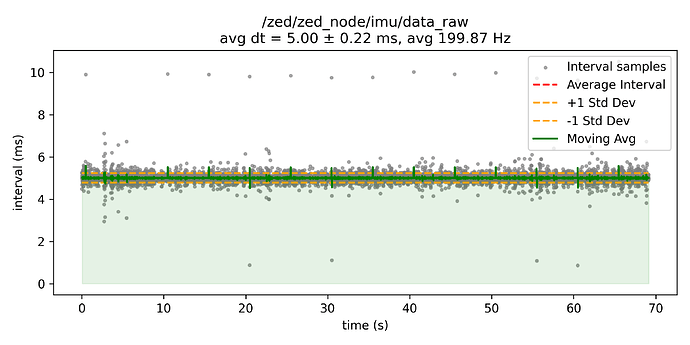

I tested changes to the QoS settings on the subscriber side, and it appears that the “burst” behavior of the Imu topic published from ZED-ROS2 wrapper is mostly determined by the Depth value within the QoS settings on the subscriber side.

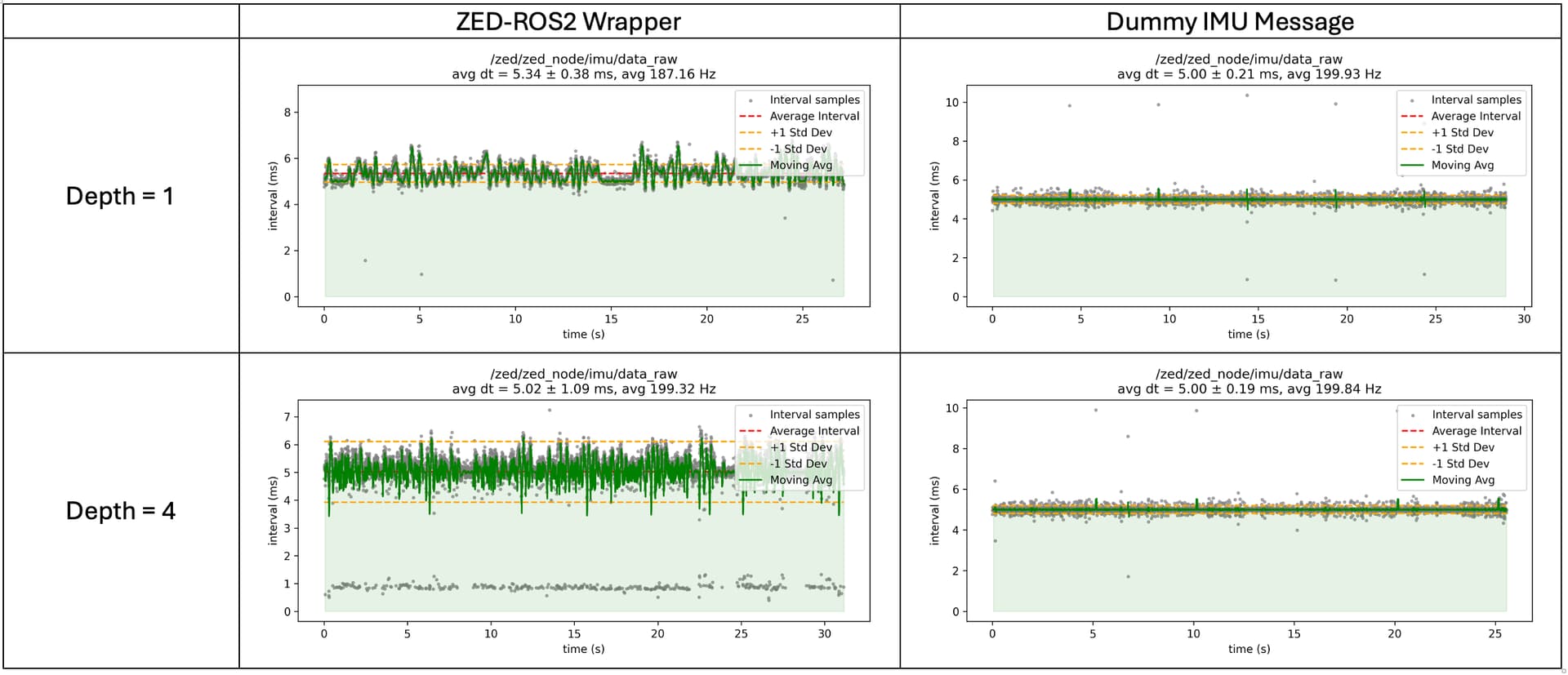

As shown in the result below:

The QoS settings of the ZED-ROS2 wrapper remain unchanged.
Using depth=1 setting for the Imu topic subscriber shows dropped messages but no bursts.
Changing it to depth=4 nearly eliminates dropped messages but introduces bursts.
Dummy Imu messages does not showed noticeable differences.

Calling ZED-SDK Python Wrapper

I wrote a simple code to call the ZED SDK Python API for use, but the issue is that it cannot publish topics at a frequency higher than 30Hz.

$ python tools_pub_imu_zed.py

[2025-05-15 12:14:48 UTC][ZED][INFO] Logging level INFO
[2025-05-15 12:14:49 UTC][ZED][INFO] Using USB input... Switched to default resolution HD720
[2025-05-15 12:14:49 UTC][ZED][INFO] [Init] Depth mode: NONE
[2025-05-15 12:14:50 UTC][ZED][INFO] [Init] Camera successfully opened.
[2025-05-15 12:14:50 UTC][ZED][INFO] [Init] Camera FW version: 1523
[2025-05-15 12:14:50 UTC][ZED][INFO] [Init] Video mode: HD720@30
[2025-05-15 12:14:50 UTC][ZED][INFO] [Init] Serial Number: S/N 30893638
[2025-05-15 12:14:50 UTC][ZED][WARNING] [Init] Self-calibration skipped. Scene may be occluded or lack texture. (Error code: 0x01)
[INFO] [1747311290.937212291] [zed_imu_publisher]: Publishing IMU data on topic /zed/zed_node/imu/data_raw at 200.0 Hz
[INFO] [1747311290.938302675] [zed_imu_publisher]: Stats will be printed every 10.0 seconds
[INFO] [1747311290.939191099] [zed_imu_publisher]: Press Ctrl+C to exit.
[INFO] [1747311290.940081603] [zed_imu_publisher]: ZED camera initialized.
[INFO] [1747311290.940878438] [zed_imu_publisher]: Publishing IMU data...
[INFO] [1747311290.941677642] [zed_imu_publisher]: Press Ctrl+C to exit.
[INFO] [1747311300.914889513] [zed_imu_publisher]: Published 301 messages in 10.0s -> 30.0 Hz
[INFO] [1747311310.949842964] [zed_imu_publisher]: Published 301 messages in 10.0s -> 30.0 Hz

Here is the Python code I used. I’m not quite sure which part is causing the issue. There shouldn’t be any problems lowering the publish rate below 30Hz.
tools_pub_imu_zed.py (4.8 KB)

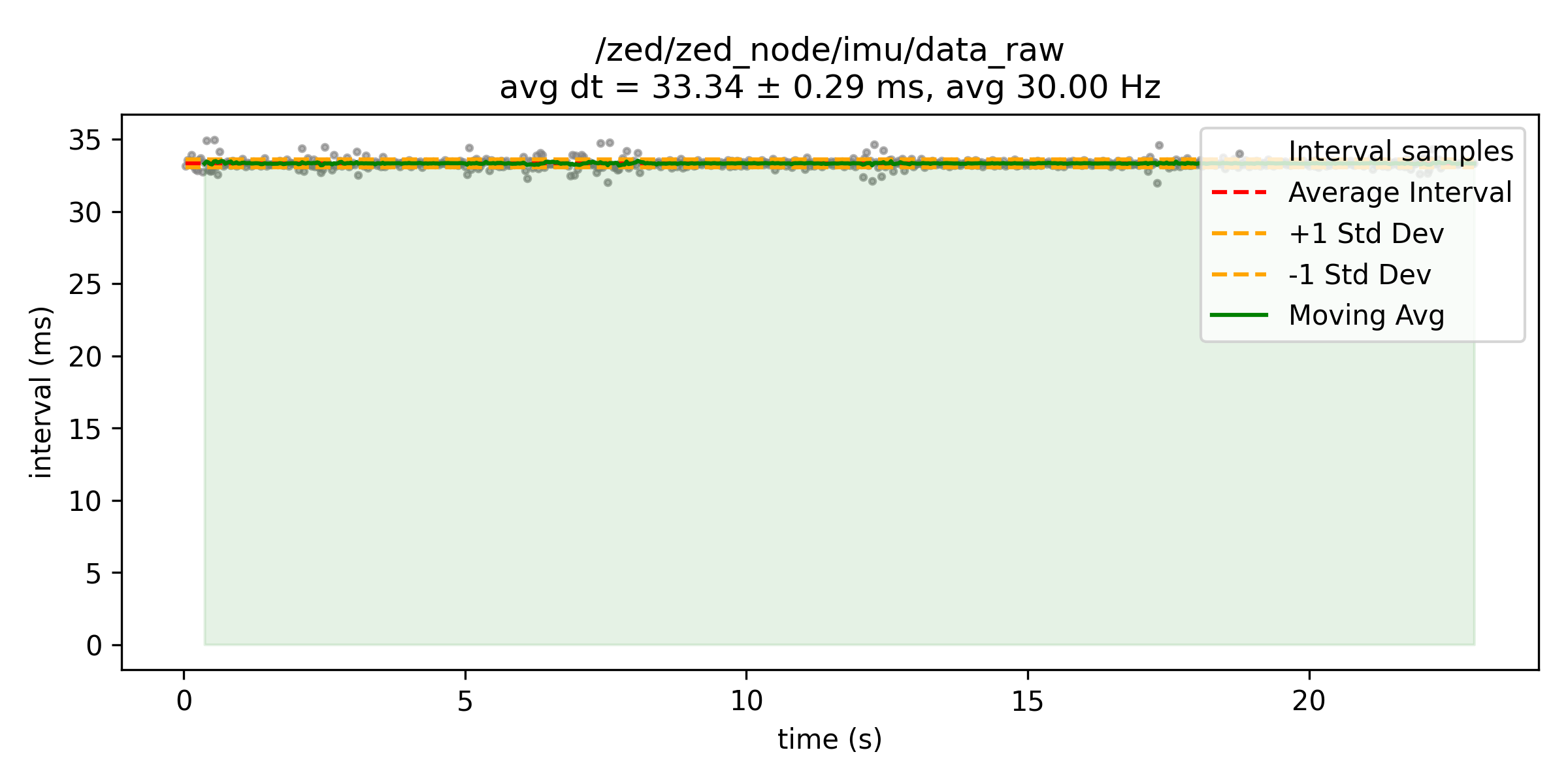

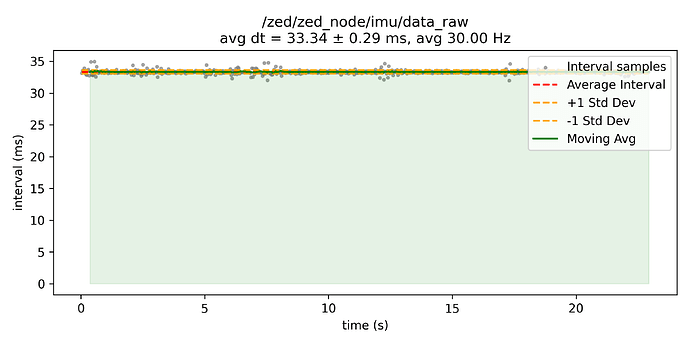

Although, when monitoring the IMU topic published at 30Hz, I’ve confirmed a stable sampling rate. I hope you can identify any issues in the following code so that I can test again at 200Hz.

Once again, thank you for your assistance!

K2H · May 16, 2025, 8:10am

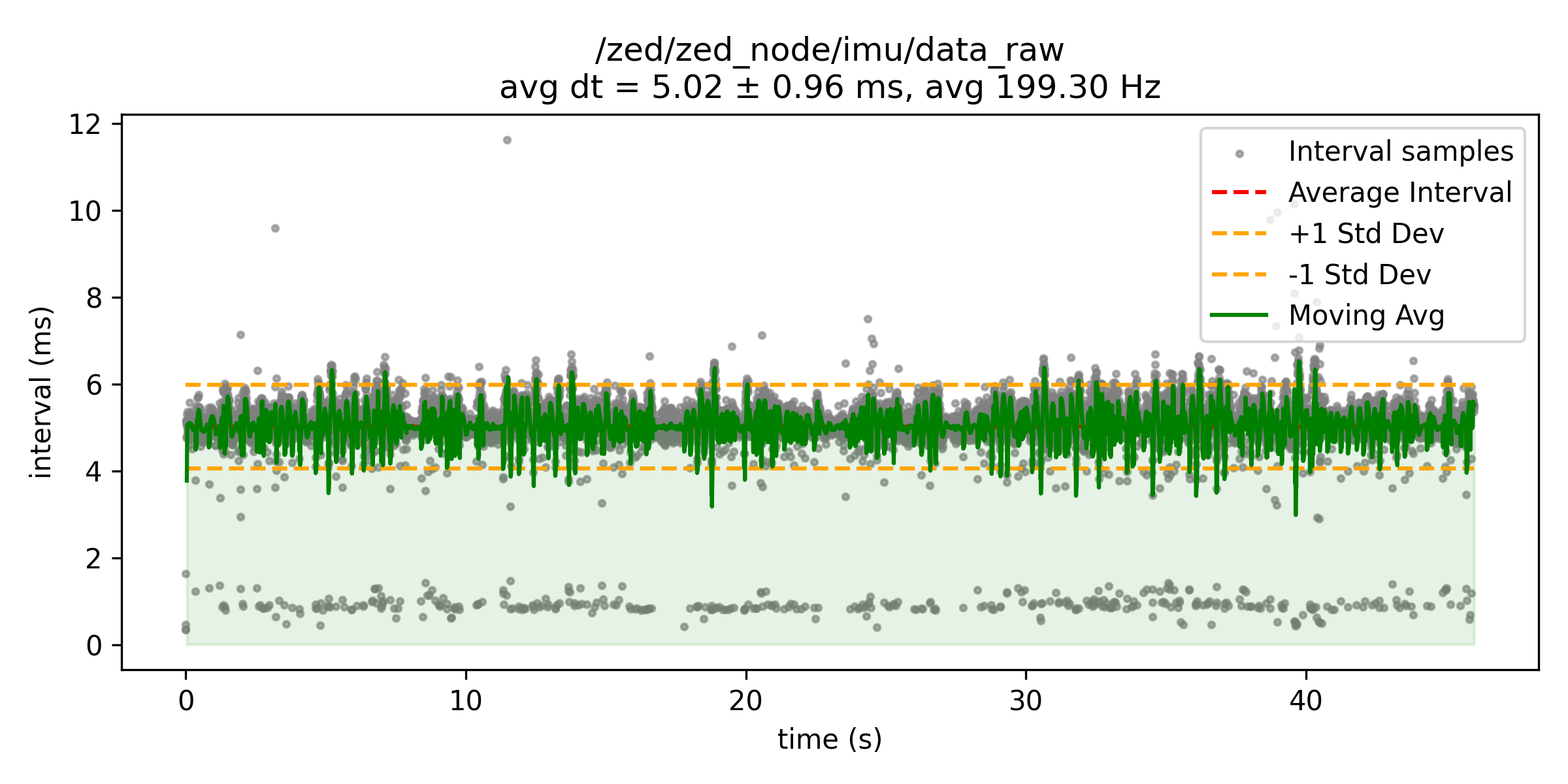

I’ve figured out that simply removing zed.grab(self.runtime_params) enables retrieval of IMU data at a rate of 200Hz or higher. Test results indicate that directly invoking ZED SDK via Python code provides stable sampling rates consistently different from those produced by ZED-ROS2 Wrapper.

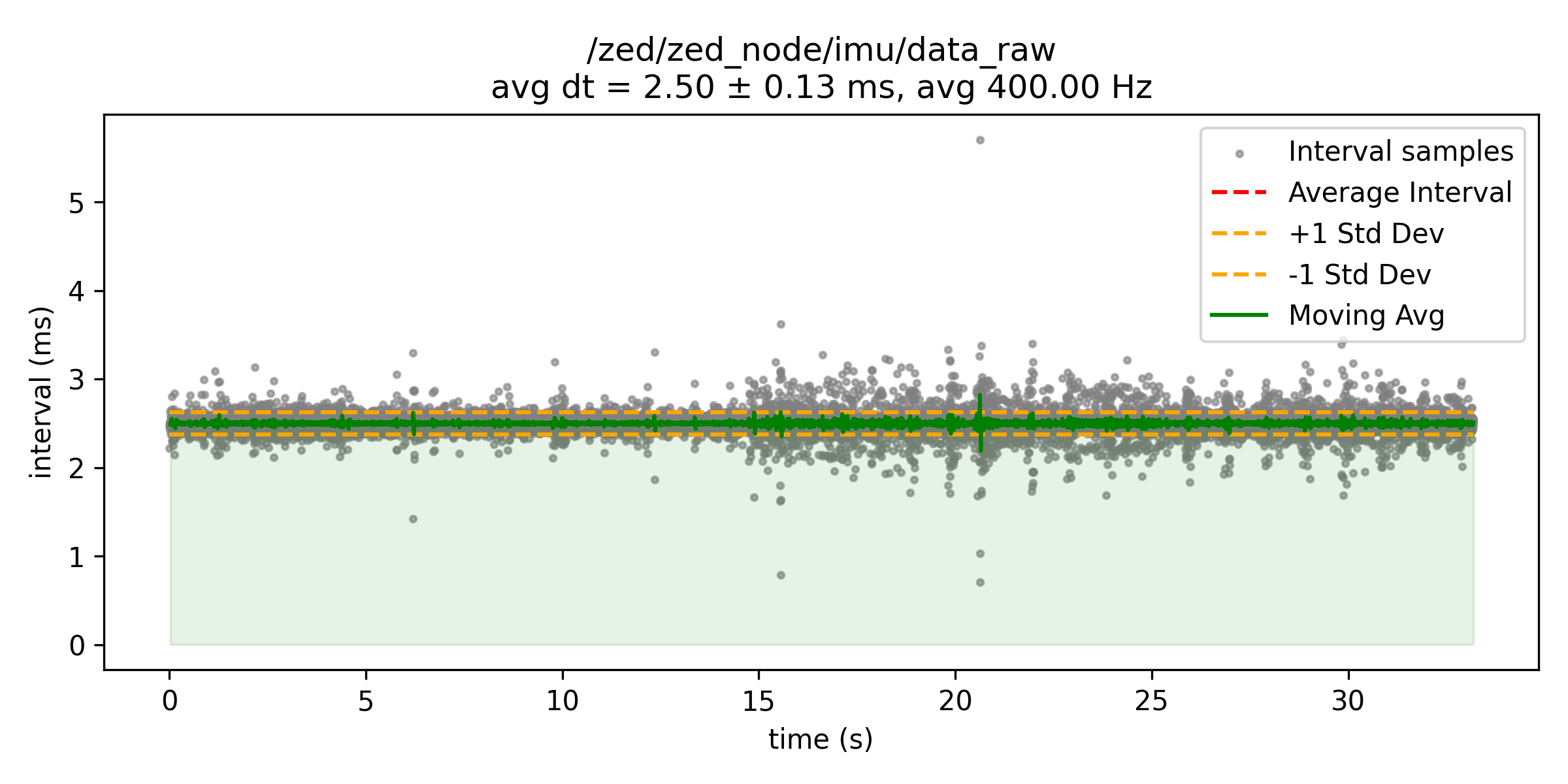

Here’s the result. I’ve tested both 200Hz and 400Hz configurations, and neither of them “burst” topics.

Myzhar · May 16, 2025, 5:43pm

This is caused by the grab function, which is blocking. You need a multi-threading application to retrieve IMU information at full rate. One thread to call grab, one thread to call getSensorsData.

This is always true because you increase the queue size.

This sounds reasonable.

Interesting information indeed. The described behavior is expected according to my experience with ROS 2.

This is a possible alternative to multi-threading if you do not need RGB and depth information.
