Recently got my Mini Carrier Board with Orin NX and it came with a cooling plate which i like but can’t find it in the CAD model of the board and i need it to design the mount properly, where can i find it?
Hi @guyzoler
Welcome to the Stereolabs community.
You can find all the 3D models of our devices on this page:
Hi @Myzhar
Thanks for the quick replay but that web page only related item is the:

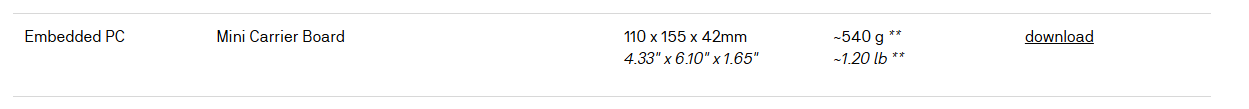

if you download it you get a file called: ZEDBOARDmini_orin_sansmodule.step
which from the name reads no jetson, and if you open it you get as the name suggests a board without jetson and since there is no jetson there is no cooling adapter.

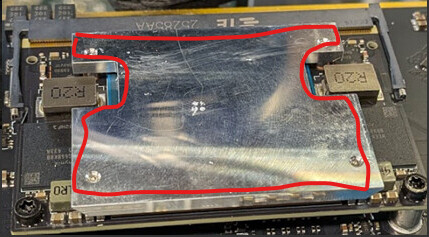

please let me know if i am missing something, what i need is that metallic part on the jetson module of the image in my first post.
Thanks
Guy
This is expected.
You can download the 3D model off the Jetson module from the official NVIDIA resource page:
https://developer.nvidia.com/embedded/downloads#?search=cad&tx=$product,jetson_orin_nx
HI @Myzhar
I have the model for the Jeston module, but if you read carefully i am looking for the cooling plate that you guys add on top of the module this is not an NVIDIA part. if you have such carrier with module at hand you this part:

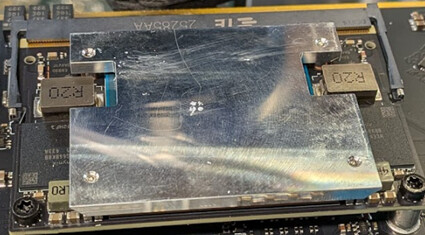

this is what i am missing.
@guyzoler unfortunately, we cannot share the 3D model of the cooling plate for copyright reasons.
I recommend you take the quotes by hand and create your own 3D model.
@Myzhar so you guys sell it but how do you expect people to use it? to make sure my design accommodate the board and cool the jetson i need to accommodate the plate as well and make sure with the thermal pad it is not putting too much pressure but also no air gap, how do you guys advise you customers to do so?
